Product information:
Colour: Black
Material: Metal + ABS
Frequency response: 0.05%dB/-2.0dB (20Hz to 20kHz), refer to rated output power @1kHz, GAIN knob: medium
Total harmonic distortion (THD+N): 0.02%@+10dBu (20Hz to 20kHz), GAIN knob: medium
Noise (20Hz to 20kHz): Residual output noise, -85dBu (STEREO OUT, STEREO LEVE), GAIN knob: small
Crosstalk (1kHz)*2: -83dB
Input/output impedance:
Microphone input: 3kΩ, line input: 10kΩ
Output: 150Ω (balanced) 75Ω (unbalanced)
AES digital signal input and output: 110Ω
Input channels: MIC*4, 2REC, PC, 2LINE, USB, BT, 3.5MINI
Output channel: STEREO OUT: 2, PHONES:1, 3.5MINI MAIN PH OUT:1, 2.GROUP PH:1.3.5MINI LOOP BACK output: 2.REC
Bus: Stereo: 1, GROUP:1.
Input channel function:
HPF(Mono)80Hz,12dB/octave (CH3,4) EQ HIGH
Gain: +15dB/-15dB frequency: 10kHz ramp frequency: EQ LOW
Gain: +15dB/-15dB Frequency: 100kHz Ramp frequency: PEAK LED When the signal after EQ reaches 3dB below the distortion, the LED lights up
LED indication: MAIN STEREO LEVEL knob, the green light is on when the MAIN LEVEL signal reaches -10dB, and the red light is on when it reaches 3dB below the distortion
Input and output level: MIC (-60dB) LINE OUTPUT (-40dB) MAX OUT (+12dB)
USB audio: 2IN/2OUT USB audio 2.0 compatible, decoding rate: 48.1kHz, Bit depth: 24-bit
Effect category: independent volume adjustment effect: true digital effect processing
Phantom power supply voltage: support large diaphragm condenser microphone
Voltage adapter: DC 5V/2.0A standard
SKU CJJT100231901AZ · In stock
Availability
Shipped from China In stock
Shipping estimate
Secure checkout — payments processed by Stripe; card details never touch our servers.
Not right? See our refund policy and terms.
Typically delivered in 7–20 business days.
In the description it says that I can record with the Usb cable and you can't, on the front you lack a screw
Parcel Arrived without breakage, well packaged, not tried yet, reasonable transit time for France.
ok but price of delliwery is doubled in Croatia
Very good
well done
after 5 months money was refund
produto muito bom vendedor enviou muito rápido só demorou um pouco aqui no Brasil porque o correio aqui do Brasil atrasa muitas entregas recomendo bom vendedor
Top quality product, just perfect.
Works perfectly well
Congratulations to record delivery, were 11 diasda purchase until arrives in my home inside of Sao Paulo, product in perfect condition, above expectations, honest seller

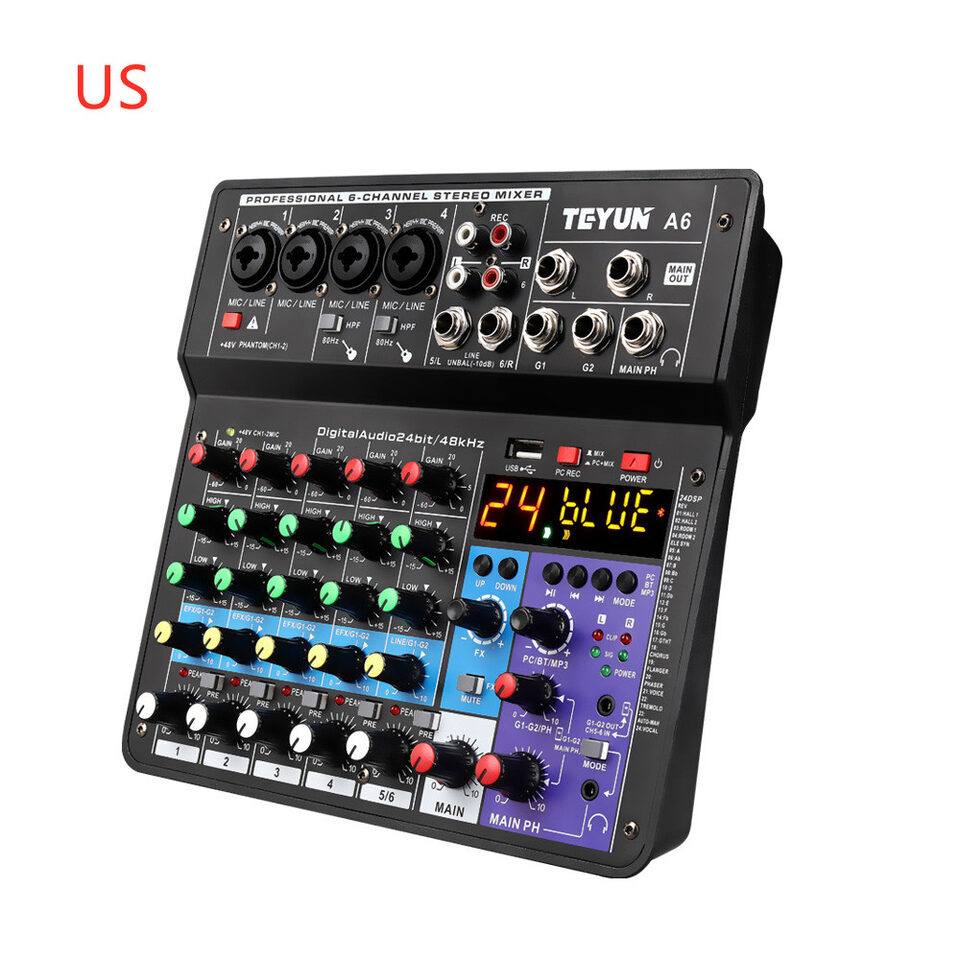

Bluetooth Sound Card Mixer Live Equipment Microphone Effector
$118.89
Bluetooth Sound Card Mixer Live Equipment Microphone Effector
$118.89
Total: $150.45
