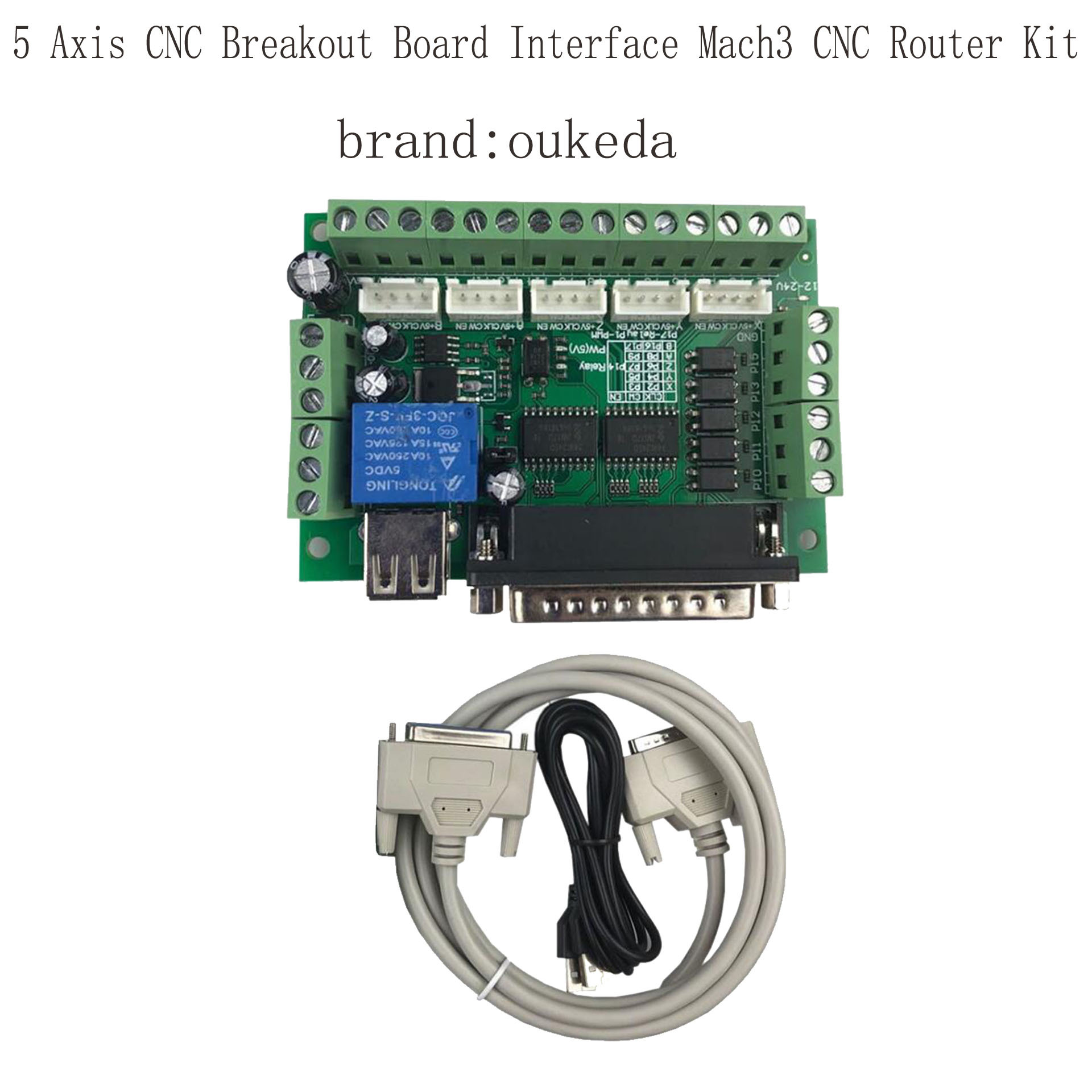

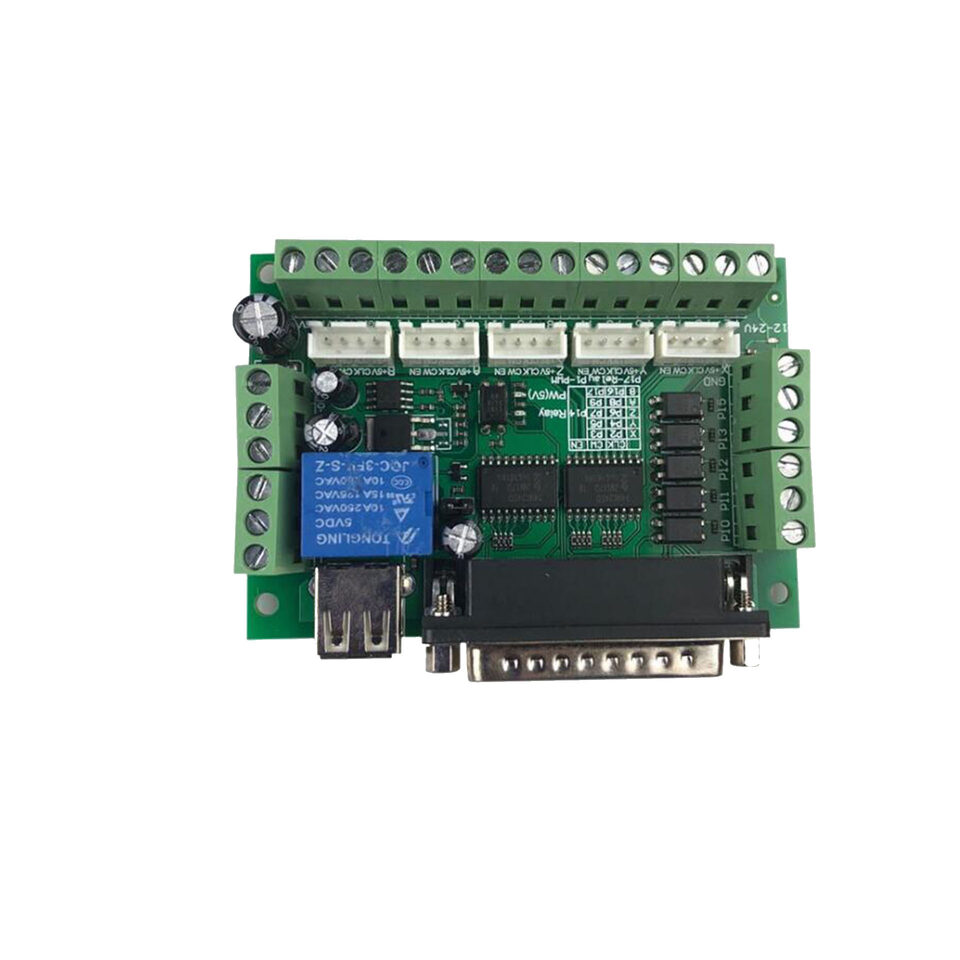

5 Axis CNC Breakout Board Interface Mach3 Router

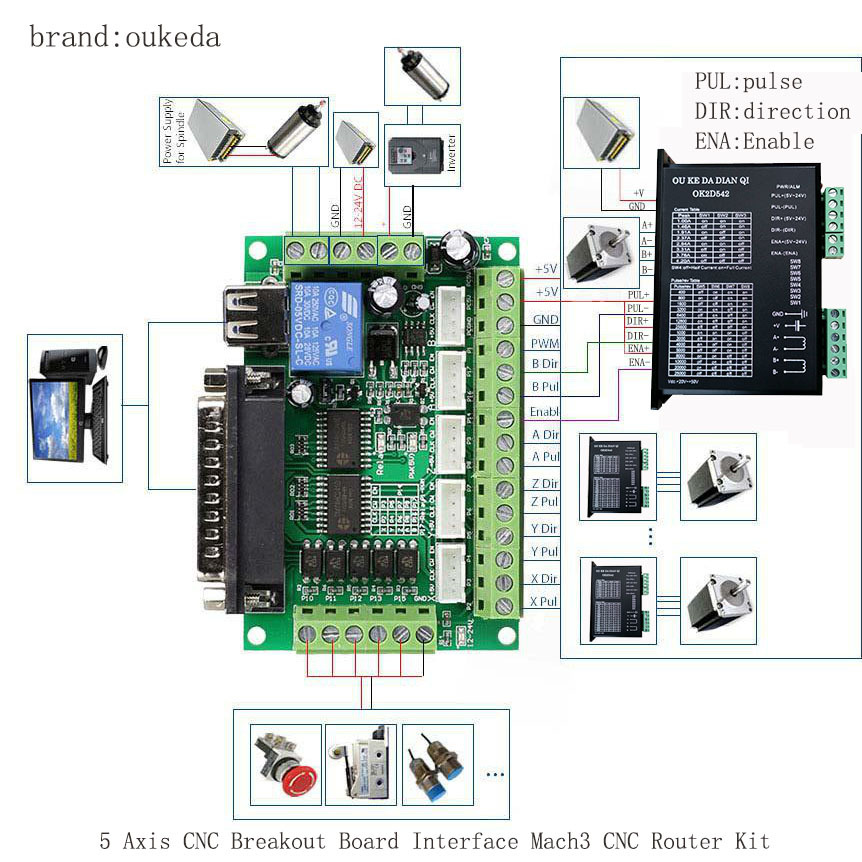

1. Functions and Features:
l High performance, cost-effective.
l Maximum support 5-axis stepper motor driver controllers.
l Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
l USB power supply and peripherals powered phase are separated to protect computer security.
l All the signals are opto-isolated which can protect your computer security.

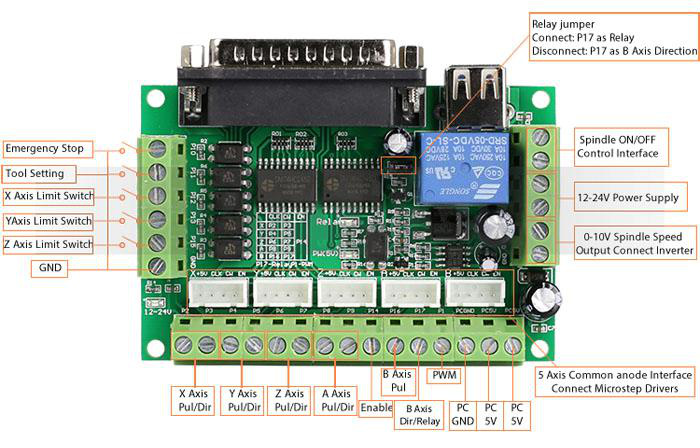

l 5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc.
l Wide input voltage range: 12-24V, and with anti-reverse function.
l One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
l Compatible with all the 2 phase microstep drivers in the market.
l Output 0-10V analog voltage for inverter to control the spindle speed.
